Category
Temperature Sensors - Thermocouples, Temperature Probes
Manufacturer
Raytron
RoHS
YES
Certification
Delivery
Payment

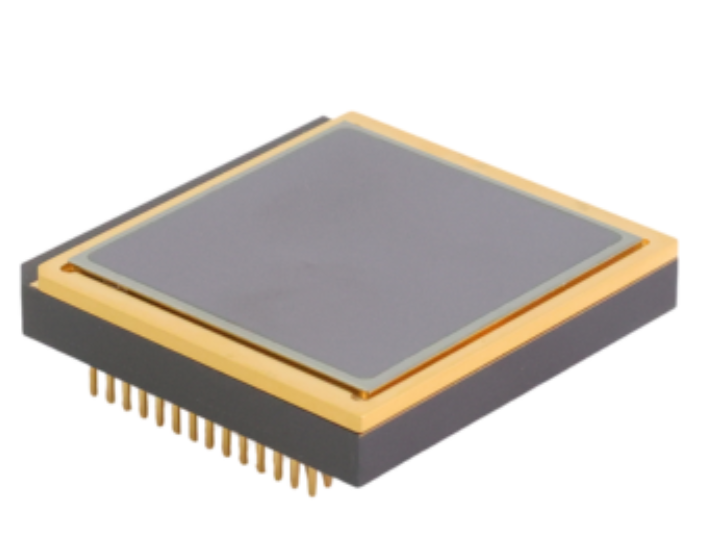

| Sensor Technology | VOx microbolometer |
| Manufacturer | Raytron |
| Spectral Range | 8-14μm |
| Pixel Pitch | 12μm |
| Array Format | 1280×1024 |
| Output Format | 14bits(25/30Hz)13bits(50Hz) |
| Read Mode | Rolling shutter mode |
| mirroring | X-mirroring, Y-mirroring |
| Operability | ≥99.5% |
| Non-uniformity Correction | On-chip 6-bit non-uniformity correction |
| Frame Rate | 25/30/50 Hz |
| Operating Temperature Range | -40~+85℃ |
| Thermal Time Constant | <15 ms |
| NETD | <40 mK (f/1.0, 30Hz, 300K) |
| Power Consumption | <300 mW (30Hz, 25℃) |
| Package Type | 56-Pin Ceramic |
| Size | 27×27×4.6 mm³ |
| Weight | ≤10 g |
Data sheet: Work in prgress, stay tuned!
